TurnX200 Machine
True to the DNA of FOX full-field machines, this new machine incorporates a motorised X-axis with a 200 mm stroke, paving the way for expanded applications, particularly for measuring revolving parts. Designed from the outset to keep pace with changing industrial needs, the TurnX200 was conceived as a transitional machine between full-field measurement and scanning technologies, thanks to the option of integrating a fourth axis and its dedicated accessories. The TurnX200 has been specifically developed to meet the inspection requirements of small fasteners, microcomponents and rivets, particularly in the medical, aerospace and industrial sectors, where precision, repeatability and control of measurement uncertainties are crucial.
Integrated touch screen
17’ Screen

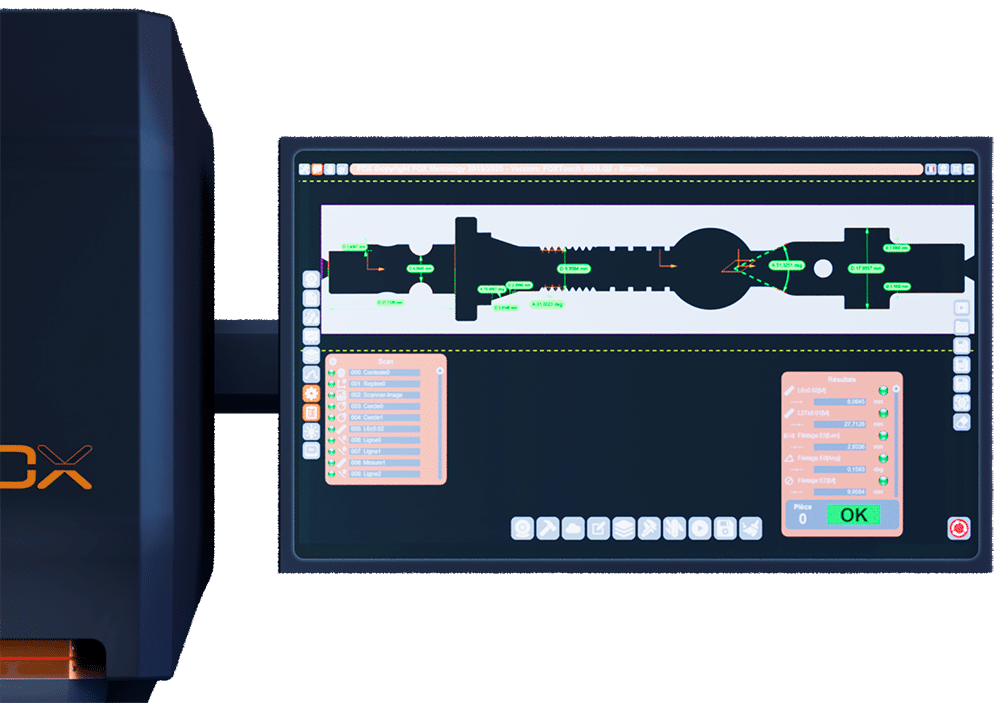

A 17-inch touch screen is integrated into the machine and can be positioned on the left or right side depending on your needs. Designed to optimise the ergonomics of your control station, this configuration frees up space under the machine and improves working comfort. A true control centre, the screen allows you to manage all your operations independently: creating programmes, launching control ranges, editing reports and much more.
Measuring table with a
capacity of 200 mm
The TurnX200 is equipped with a motorised measuring table on the X-axis. It guarantees precise, smooth and repeatable movements, which are essential for reliable inspections. With a stroke of 200 mm, it opens up greater measurement possibilities for your turned parts.
Optional 4th axis
The TurnX200 can be fitted with a 4th axis to extend its measurement capabilities. This transforms your optical inspection machine into a true multi-faceted measurement tool. It enables complete, automated inspection of even the most complex parts in a single cycle, without manual handling. Time savings, increased reliability and total quality control: the addition of a 4th axis offers optimal inspection performance, perfectly suited to demanding production environments.
The different configurations of the 4th axis
Centre point and tailstock
2- or 6-jaw chuck
45° mirror
“
The advantage of this modularity is flexibility:
the machine quickly adapts to different types of parts and rotational checks,
resulting in optimised set-up times for operators.
”
Technical information about the machine
TURNX200
Versatile machine for your most demanding needs
Measuring capacity
Motorised X table: 200 mm
Accuracy
X axis: (0.9+0.02L) μm
Full field: +/- 0.9 μm
FOV
24 x 36 mm
FAQ
Yes, you can use the TurnX as an open-field machine, allowing you to palletise over the 200 mm X-axis travel.
The integration of the 4th axis option gives access to dynamic measurement features such as circularity, cylindricity, runout, etc.
Absolutely. It is possible to integrate coaxial lighting to expand the detection possibilities via the software.
Yes. Our R&D teams have developed algorithms that compensate for imperfections related to the clamping system.
Yes, your programmes are fully compatible between the different machines in the range, provided they use the same features.
